FREE SAMPLE: 35 mm NanoSurface Dish x2

FREE SAMPLE: 35 mm NanoSurface Dish x2

0.00 32.00

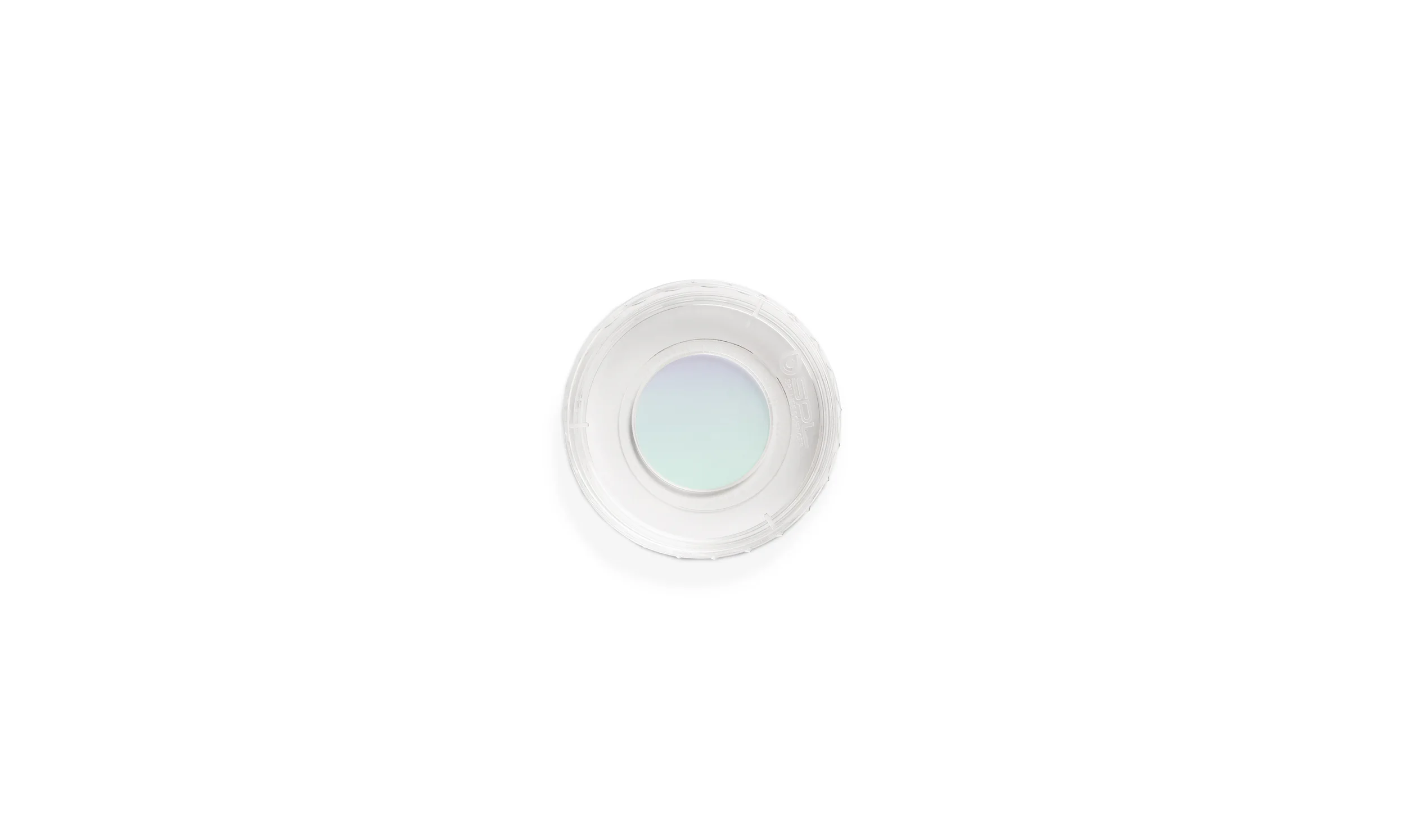

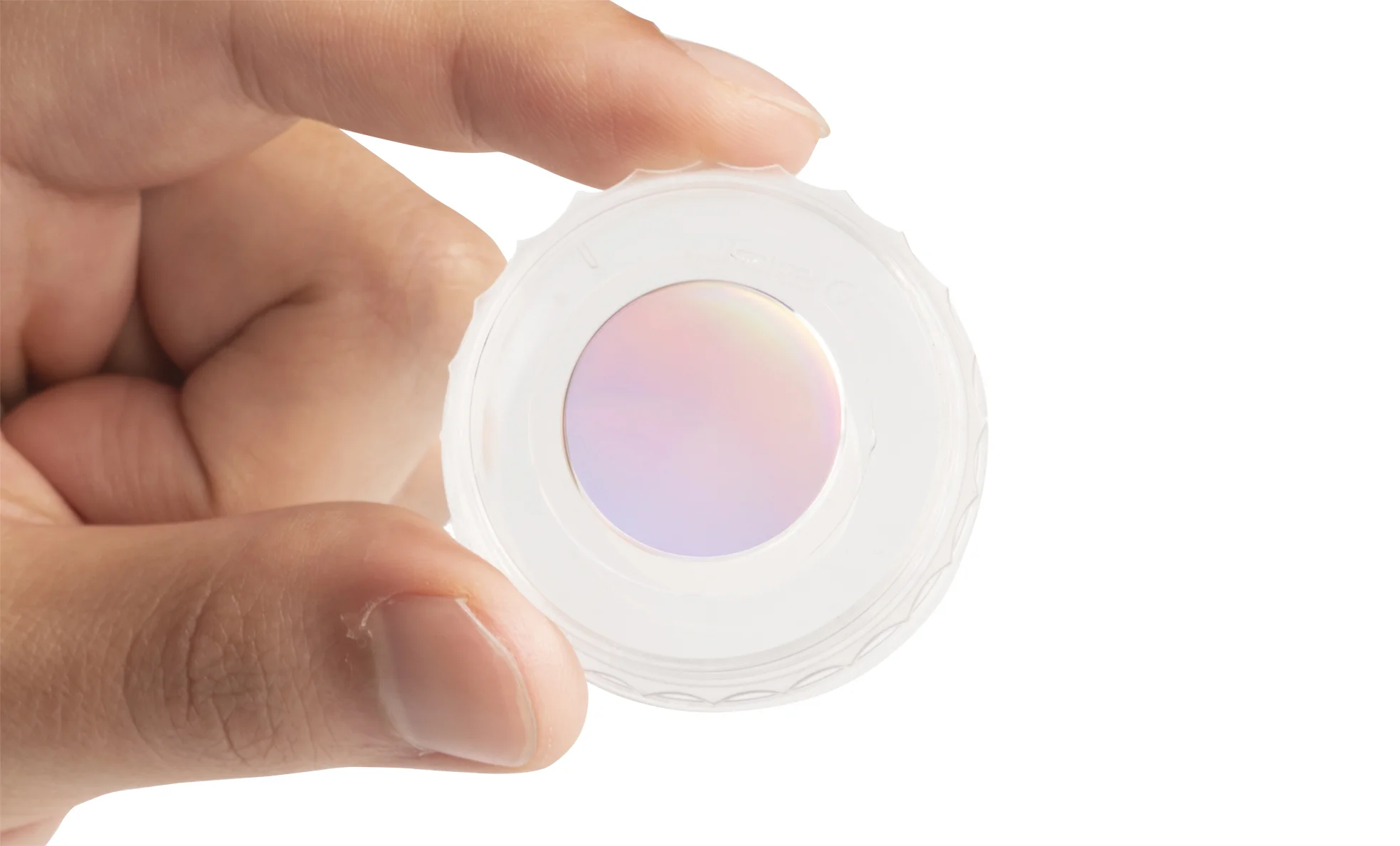

The 35 mm NanoSurface Dish features a glass bottom with nanopatterned surface topography, which provides a cellular microenvironment that mimics the aligned architecture of the native extracellular matrix.

Request a free sample for your pilot study. Learn first-hand how NanoSurface Cultureware can enhance your cell culture experiments.

Free samples limited to 1 order of 2 dishes per customer.

Find an International Distributor

View Additional Resources

Quantity:
sale
Request Sample

Product Specifications

Note: All numbers are approximate and subject to revision.
Product Code ANFS-0001 ANFS0001
Surface Topography NanoSurface
Diameter 20 mm
Coverglass Thickness No. 1.5 (0.175 +/- 0.015 mm)
Approx. Pattern Growth Area 3.14 cm2
Total Well Volume 17,000 μL
Working Volume 3,000 μL
Weight 0.3 kg
Dimensions 31 x 23 x 6 cm
Packaging Volume Free Sample (2 Dishes)
Cell Culture Treated Yes
Sterilized with Gamma Irradiation Yes

Recapitulate the Extracellular Matrix in a Dish with NanoSurface Biomimetic Technology

NanoSurface Cultureware provides your cells and tissues a biomimetic surface to improve the physiological relevance of your experiments. Shortly after plating, cells cultured on NanoSurface Cultureware exhibit enhanced structural and phenotypic development when compared to cells grown on conventional dishes. NanoSurface topography promotes cytoskeletal reorganization and cellular alignment by mimicking the structure of the extracellular matrix. NanoSurface Cultureware is available in familiar standard formats, featuring glass-bottom wells for high-quality imaging.

NanoSurface dishes promote the structural and phenotypic development of many cell types:

• Cardiomyocytes • Endothelial cells
• Fibroblasts • Cancer cells
• Induced pluripotent stem cells • Mesenchymal stem cells
• Epithelial cells • Neuronal cells
• Human embryonic stem cells • Skeletal muscle cells
• Smooth muscle cells • And many more

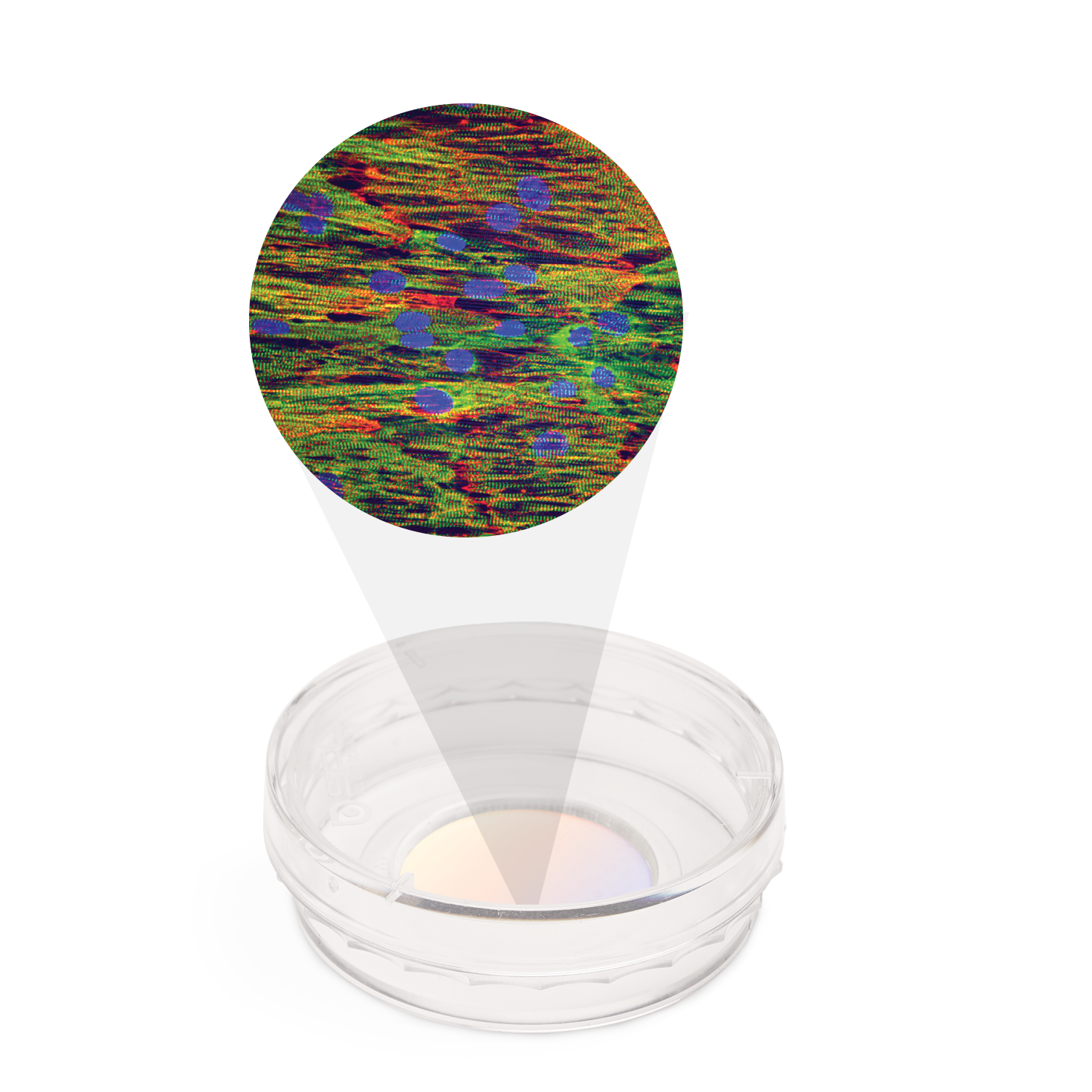

CDI iCell cardiomyocytes on a NanoSurface dish.

CDI iCell cardiomyocytes on a NanoSurface dish.


NanoSurface Cultureware vs. Conventional Dish

Comparison: Two-channel Confocal Image of CDI Cortical Neurons


Conventional Cultureware:  the orientation of neurofilaments (red) is random and less representative of  in vivo  models.

Conventional Cultureware: the orientation of neurofilaments (red) is random and less representative of in vivo models.

NanoSurface Cultureware:  neurofilaments (red) align along the direction of the nanotopography while dendrites (MAP2 stain; green) do not.

NanoSurface Cultureware: neurofilaments (red) align along the direction of the nanotopography while dendrites (MAP2 stain; green) do not.



NanoSurface Cultureware Benefits

High-quality Imaging

Compatible with high-magnification, high-NA transmitted light and fluorescence microscopy techniques. No spectral loss across commonly used fluorophores.

Reproducibly Structured Cell Cultures

Highly uniform, precise, and accurate nanopatterns ensure that your results are consistent and reproducible from plate to plate.

Industry Standard Culture Formats

Cultureware comes in a variety of ANSI/SLAS compliant form factors to guarantee compatibility with existing instrumentation and hardware.

Biomimetic Technology

Nanoscale topography mimics the aligned architecture of the extracellular matrix.

Maintain Migratory Phenotypes

Cultureware mimics aligned collagen fibers and promotes the migration of various metastatic cancer types.



NanoSurface Cultureware Brochure

Download the NanoSurface Cultureware product brochure for general information on cultureware products offered in a convenient PDF format. For additional information, please contact support@nanosurfacebio.com.


Learn more about NanoSurface Cultureware and the benefits of using nanopatterned topography for your cell cultures:
