35 mm NanoSurface Dish (10-pack)

35 mm NanoSurface Dish (10-pack)

160.00
Volume Quantity:
Topography:
Quantity:
Add To Cart


Product Specifications

Note: All numbers are approximate and subject to revision.
Product Code ANFS-0001 ANFS0001 FLAT-0001 FLAT0001
Surface Topography NanoSurface Unpatterned "Flat"
Diameter 20 mm 20 mm
Coverglass Thickness No. 1.5 (0.175 +/- 0.015 mm) No. 1.5 (0.175 +/- 0.015 mm)
Approx. Pattern Growth Area 3.14 cm2 3.14 cm2
Total Well Volume 17,000 μL 17,000 μL
Working Volume 3,000 μL 3,000 μL
Weight 0.3 kg 0.3 kg
Dimensions 31 x 23 x 6 cm 31 x 23 x 6 cm
Packaging Volume 1 Dish / 10 Dishes / 100 Dishes 1 Dish / 10 Dishes
Cell Culture Treated Yes Yes
Sterilized with Gamma Irradiation Yes Yes

Request Sample Product

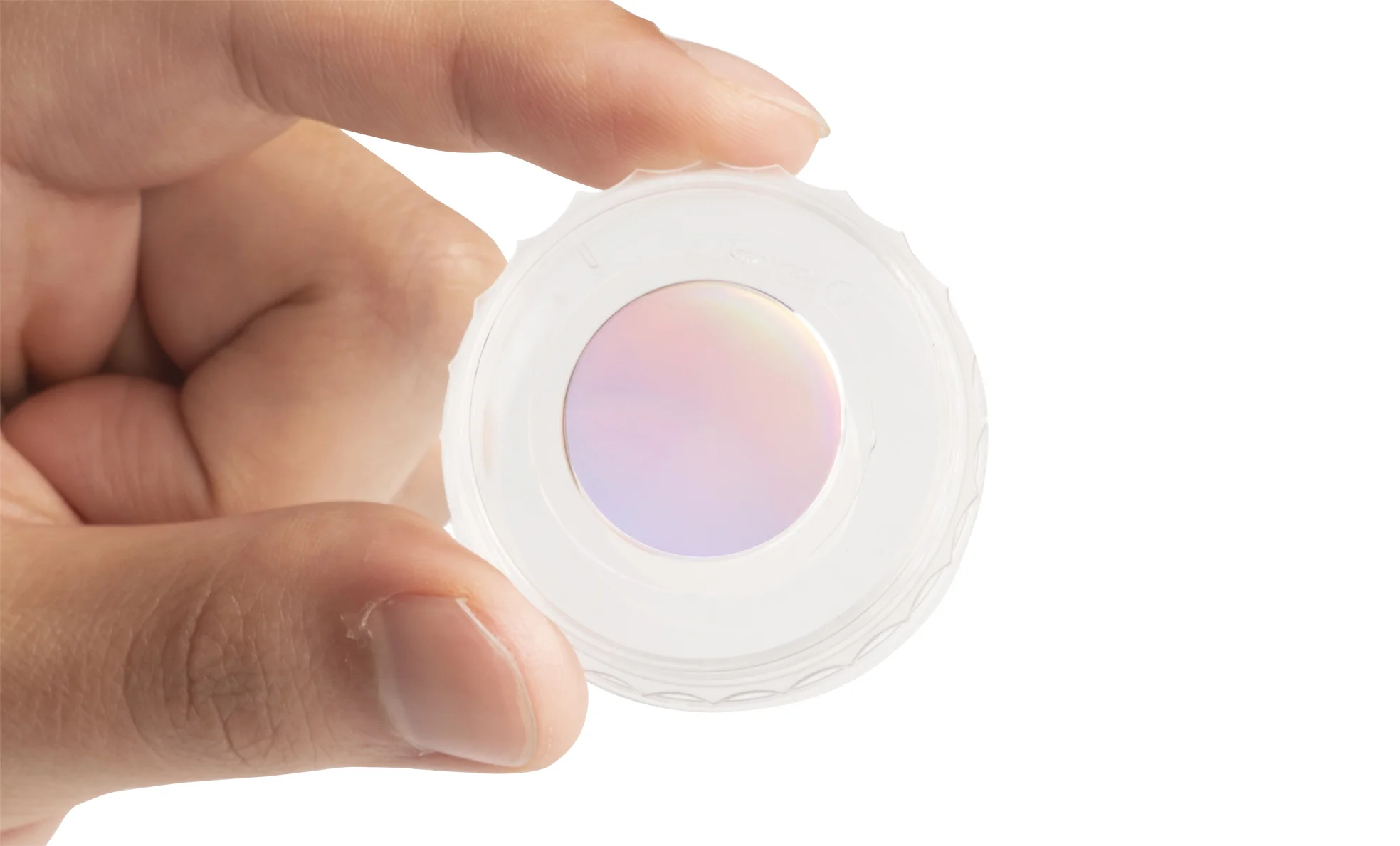

The 35 mm NanoSurface Dish features nanopatterned surface topography, which provides a cellular microenvironment that mimics the aligned architecture of the native extracellular matrix.

Request a free sample for your pilot study. Learn first-hand how NanoSurface Cultureware can enhance your cell culture experiments.


Recapitulate the Extracellular Matrix in a Dish with NanoSurface Biomimetic Technology

NanoSurface Cultureware provides your cells and tissues a biomimetic surface to improve the physiological relevance of your experiments. Shortly after plating, cells cultured on NanoSurface Cultureware exhibit enhanced structural and phenotypic development when compared to cells grown on conventional dishes. NanoSurface topography promotes cytoskeletal reorganization and cellular alignment by mimicking the structure of the extracellular matrix. NanoSurface Cultureware is available in familiar standard formats, featuring glass-bottom wells for high-quality imaging.

NanoSurface dishes promote the structural and phenotypic development of many cell types:

• Cardiomyocytes • Endothelial cells
• Fibroblasts • Cancer cells
• Induced pluripotent stem cells • Mesenchymal stem cells
• Epithelial cells • Neuronal cells
• Human embryonic stem cells • Skeletal muscle cells
• Smooth muscle cells • And many more
CDI iCell cardiomyocytes on a NanoSurface dish.

CDI iCell cardiomyocytes on a NanoSurface dish.



NanoSurface Cultureware Brochure

Download the NanoSurface Cultureware product brochure for general information on cultureware products offered in a convenient PDF format. For additional information, please contact support@nanosurfacebio.com.


Learn more about NanoSurface Cultureware and the benefits of using nanopatterned topography for your cell cultures:
