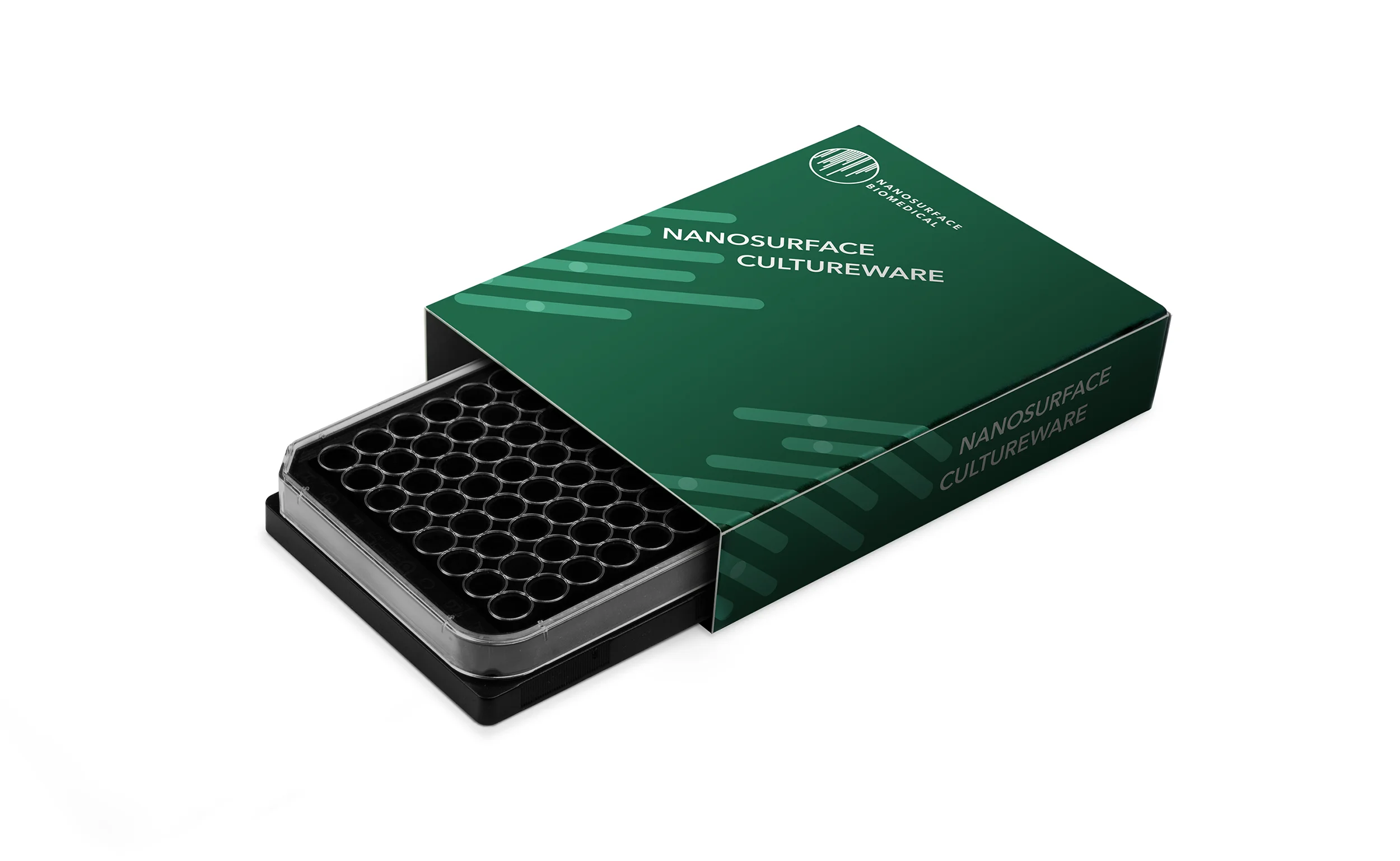

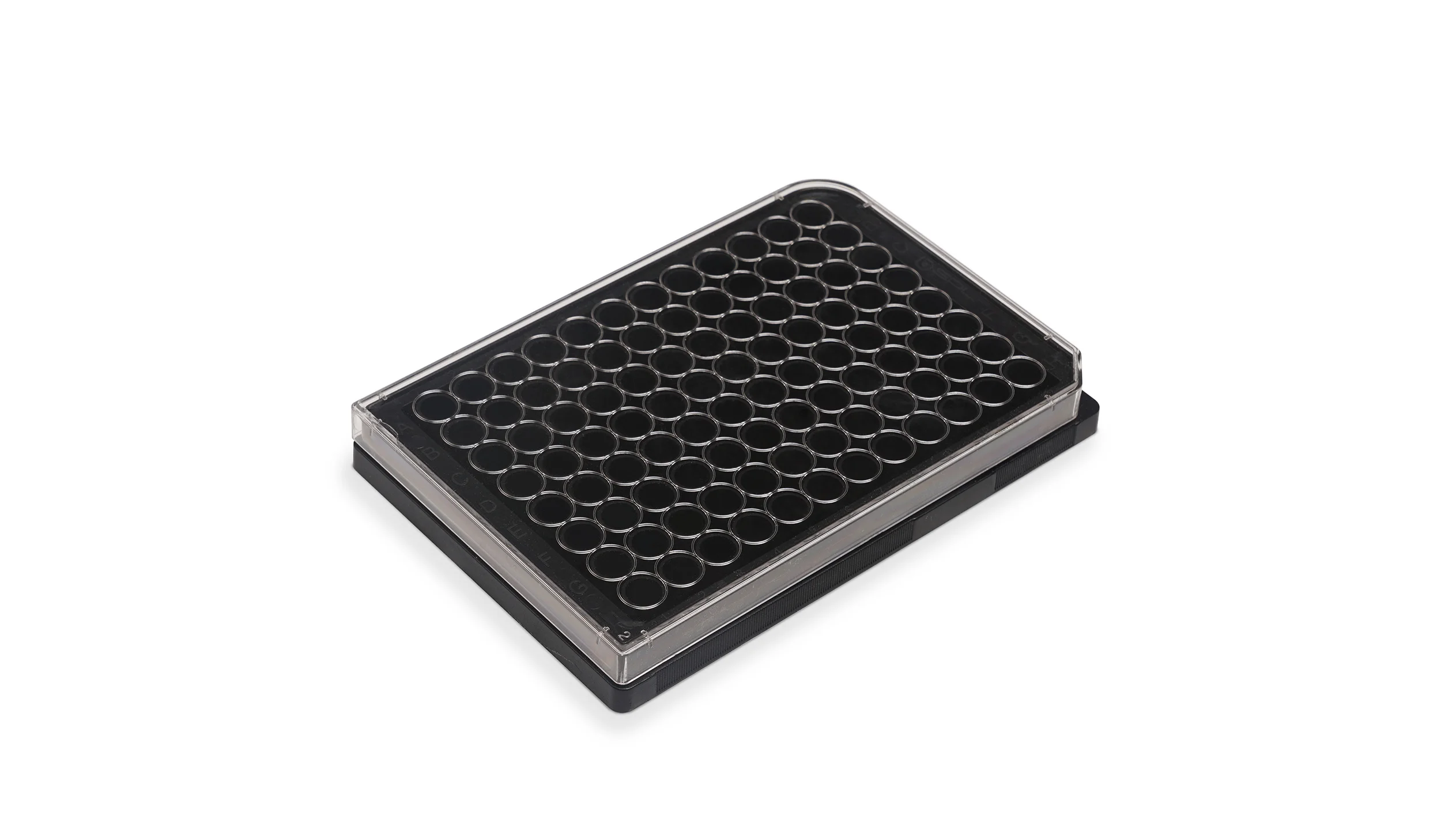

96-Well NanoSurface Plate

96-Well NanoSurface Plate

from 230.00
Volume Quantity:
Add To Cart

Product Specifications

Note: All numbers are approximate and subject to revision.
Product Code ANFS-0096 ANFS0096
Surface Topography NanoSurface
Glass Diameter 6.5 mm
Coverslip Thickness No. 1.5 (0.175 +/- 0.015 mm)
Approx. Pattern Growth Area 0.33 cm2
Total Well Volume 360 μL
Working Volume 200 μL
Weight 0.05 kg
Dimensions 31 x 23 x 6 cm
Packaging Volume 1 Plate / 10 Plates
Cell Culture Treated Yes
Sterilized with Gamma Irradiation Yes
ANSI/SLAS Microplate Size Compliant Yes

Recapitulate the Extracellular Matrix in a Dish with NanoSurface Biomimetic Technology

NanoSurface Cultureware provides your cells and tissues a biomimetic surface to improve the physiological relevance of your experiments. Shortly after plating, cells cultured on NanoSurface Cultureware exhibit enhanced structural and phenotypic development when compared to cells grown on conventional dishes. NanoSurface topography promotes cytoskeletal reorganization and cellular alignment by mimicking the structure of the extracellular matrix. NanoSurface Cultureware is available in familiar standard formats, featuring glass-bottom wells for high-quality imaging.

NanoSurface dishes promote the structural and phenotypic development of many cell types:

• Cardiomyocytes • Endothelial cells
• Fibroblasts • Cancer cells
• Induced pluripotent stem cells • Mesenchymal stem cells
• Epithelial cells • Neuronal cells
• Human embryonic stem cells • Skeletal muscle cells
• Smooth muscle cells • And many more
CDI iCell cardiomyocytes on a NanoSurface dish.

CDI iCell cardiomyocytes on a NanoSurface dish.


NanoSurface Cultureware Brochure

Download the NanoSurface Cultureware product brochure for general information on cultureware products offered in a convenient PDF format. For additional information, please contact support@nanosurfacebio.com.

Learn more about NanoSurface Cultureware and the benefits of using nanopatterned topography for your cell cultures:
